Manual Transmission and M/T Differential (cont'd)

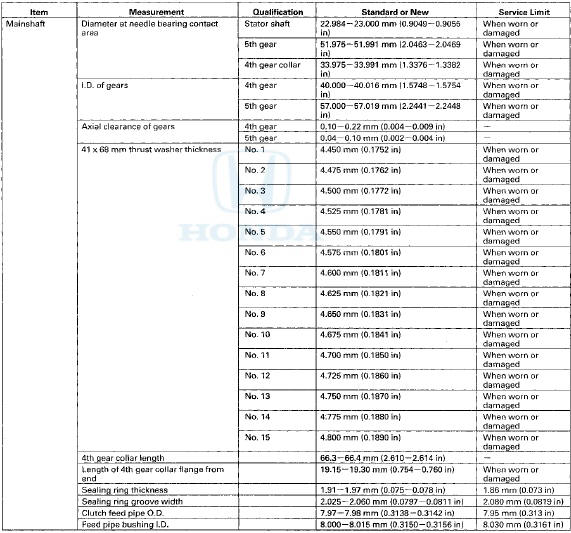

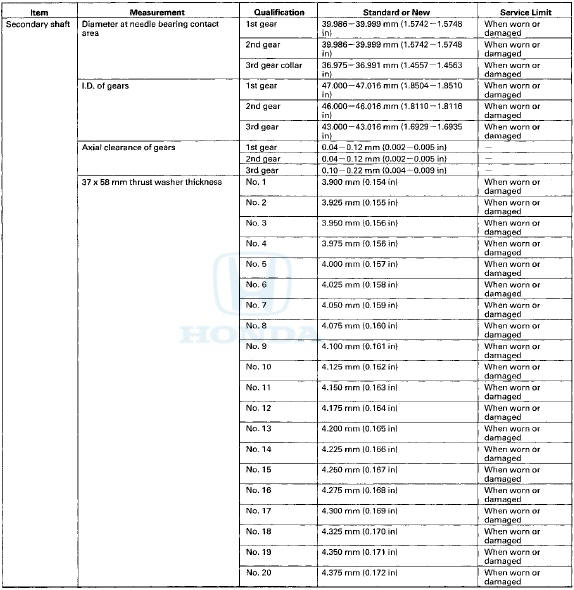

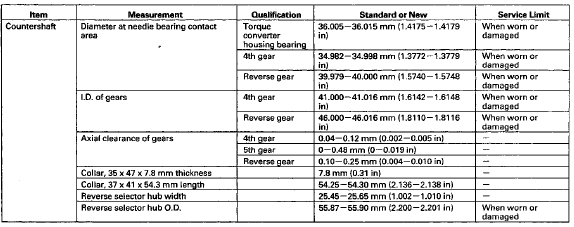

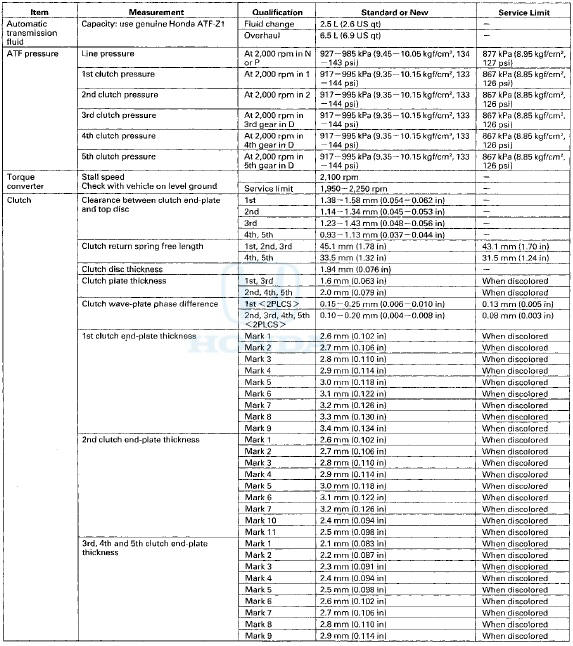

Automatic Transmission and A/T Differential: (cont'd)
