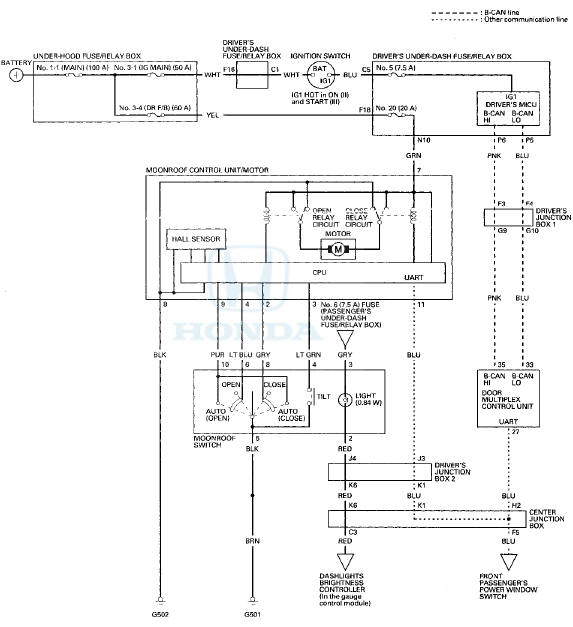

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Moonroof / Circuit Diagram
Resetting the Moonroof Control Unit
Resetting the moonroof is required when any of the following have occurred:
• The moonroof was moved manually while the battery was dead or disconnected.
• The moonroof motor was replace ...
Moonroof Control Unit input Test
NOTE; If the moonroof works OK manually, but will not work in AUTO, or
reverses frequently (obstacle detection), reset
the moonroof (see page 22-371) before proceeding with the input test
1. Turn ...
