Honda Accord: CMP Sensor A Replacement

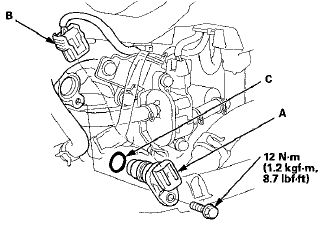

1. Disconnect the CMP sensor A 3P connector (B).
2. Remove CMP sensor A from the intake camshaft side of the cylinder head.
3. Install the parts in the reverse order of removal with a new O-ring (C).
VTC Oil Control Solenoid Valve
Removal/Test/lnstallation
1 Disconnect the VTC oil control solenoid valve 2P
connector (A).
2. Remove the bolt (B) and the VTC oil control solenoid
valve (C).
3. Connect VTC oil control valve 2P connector terminal
No. ...
Rocker Arm Oil Control Valve
Removal/Installation
All models except PZEV
1. Remove the strut brace (see page 20-306).
2. Disconnect the rocker arm oil control solenoid
connector (A) and the rocker arm oil pressure switch
connector (B).
3. Re ...
