Honda Accord: CMP Sensor B Replacement - PGM-FI System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: CMP Sensor B Replacement

1. Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly.

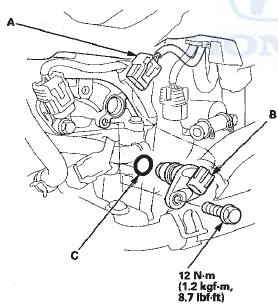

2. Disconnect the CMP sensor B connector (A).


2. Disconnect the CMP sensor B connector (A).

3. Remove CMP sensor B (B).


3. Remove CMP sensor B (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
