Honda Accord: Component Location Index - Keyless/Power Door
Locks/Security System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Component Location Index

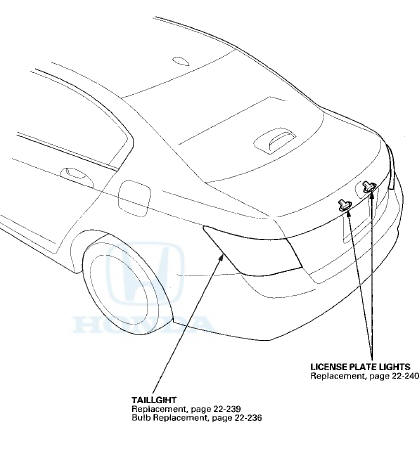

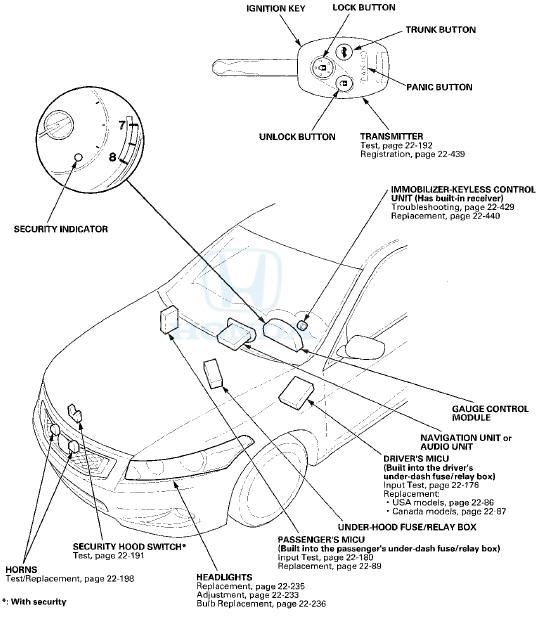

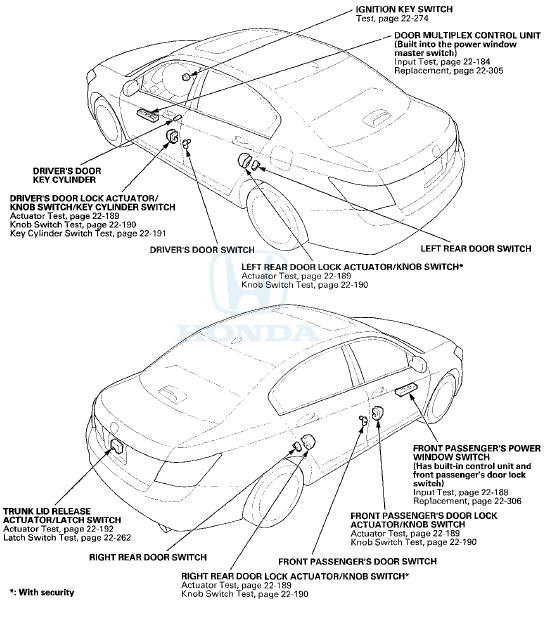

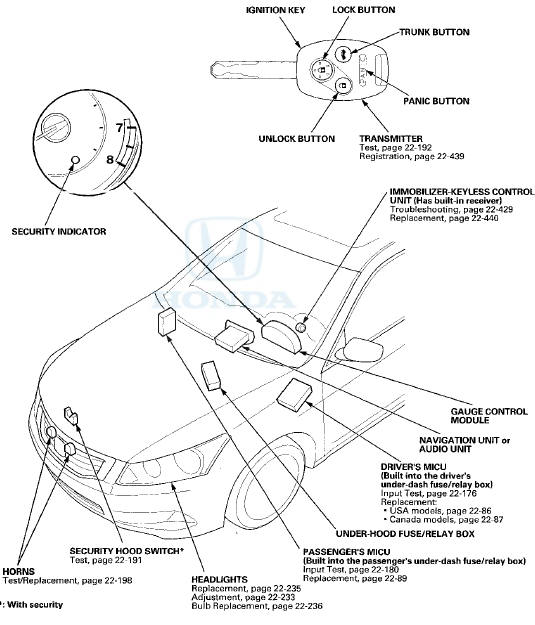

4-door

4-door


4-door

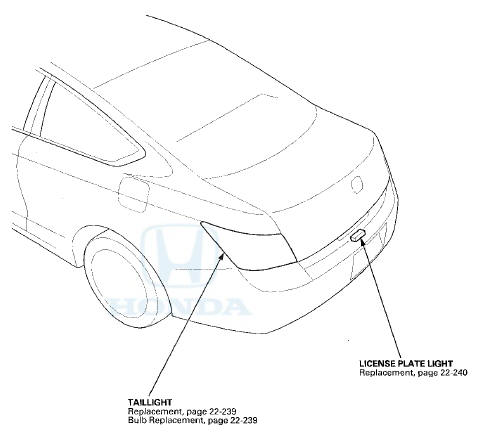

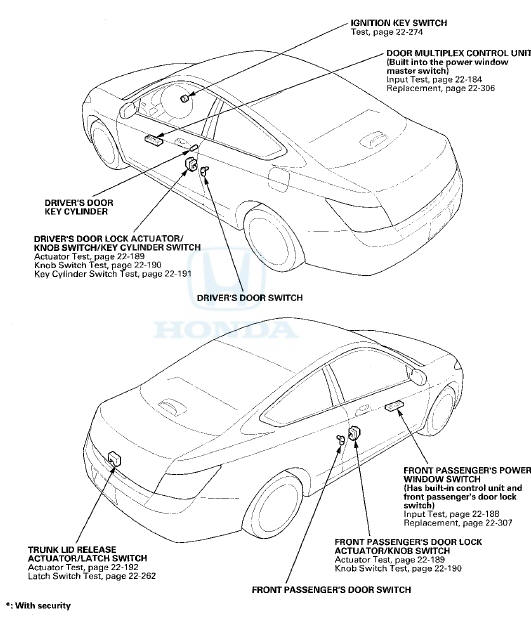

2-door


2-door


2-door


2-door

System Description


    Keyless/Power Door Locks/Security System
    ...

    System Description
    Security Alarm The security alarm system is armed automatically after the doors, hood, and trunk lid are closed and locked. For the system to arm, the ignition switch must be in the LOCK (0) posit ...
