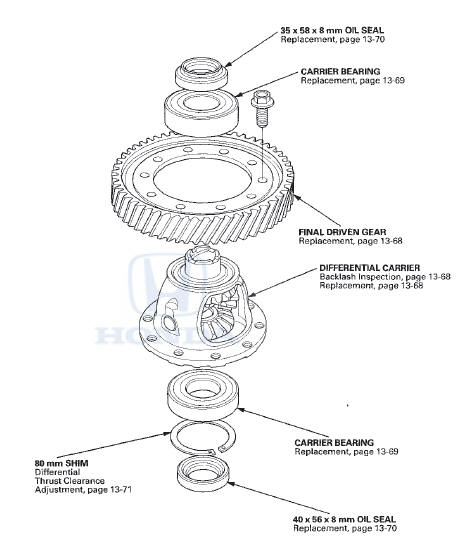

M/T Differential

...

Backlash Inspection

1. Place the differential assembly on V-blocks (A), and install the intermediate shaft (B) and the left driveshaft (C). 2. Measure the backlash of both pinion gears (D) with a dial indicator (E) ...
