Honda Accord: Lubricants a n d Fluids

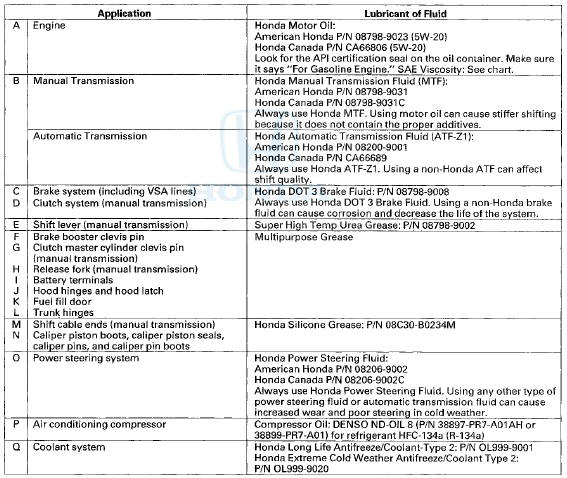

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement Overhaul, Installation, etc.) contained in each section.
NOTE: * Lubricate the following areas using the recommended lubricants and fluids.
- In corrosive areas, more frequent lubrication is necessary.
O A J E
Maintenance
...
See also:
Rocker Arm and Shaft inspection
1. Remove the rocker arm assembly (see page 6-81).
2. Disassemble the rocker arm assembly (see page
6-82).
3. Measure the diameter of the shaft at the first rocker
location.
4. Zero the gau ...
Valve, Spring, and Valve Seal Installation
Special Tools Required
Stem Seal Driver, 30 mm 07PAD-0010000
Valve Spring Compressor Attachment 07757-PJ1010A
1. Coat the valve stems with new engine oil. Install the
valves in the valve guides.
...
Recirculation Control Motor
Replacement
1. Remove the glove box (see page 20-174).
2. Disconnect the 7P connector (A) from the
recirculation control motor (B). Remove the
self-tapping screws and the recirculation control
motor from th ...
