Honda Accord: Manual Transmission

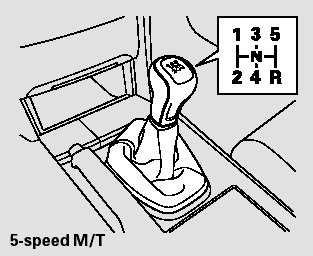

On models with 5-speed manual transmission, or models with 6-speed manual transmission
The manual transmission is synchronized in all forward gears for smooth operation. It has a lockout so you cannot shift directly from fifth to reverse.
On vehicles with 6-speed manual transmission, the lockout system prevents you from shifting directly from any forward gear to reverse while the vehicle is moving at a certain speed.
When shifting up or down, make sure you push the clutch pedal down all the way, shift to the next gear, and let the pedal up gradually. When you are not shifting, do not rest your foot on the clutch pedal. This can cause your clutch to wear out faster.
Come to a full stop before you shift into reverse. You can damage the transmission by trying to shift into reverse with the vehicle moving.
Push down the clutch pedal, and pause for a few seconds before shifting into reverse, or shift into one of the forward gears for a moment.
This stops the gears so they won’t ‘‘grind.’’
When slowing down, you can get extra braking from the engine by shifting to a lower gear. This extra braking can help you maintain a safe speed and prevent your brakes from overheating while going down a steep hill. Before downshifting, make sure the engine speed will not go into the tachometer’s red zone in the lower gear.
Rapid slowing or speeding up can cause loss of control on slippery surfaces. If you crash, you can be injured.
Use extra care when driving on slippery surfaces.
Starting the Engine
1. Apply the parking brake.
2. In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
3. Manual transmission:
Press the clutch pedal down all the
way. The ST ...
Recommended Shift Points
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
fuel economy and effective
emissions control. The following
shift points are recommended:
...
