Honda Accord: Recirculation Control Motor Circuit
Troubleshooting - Heating/Air Conditioning - Heating, Ventilation, and Air Conditioning - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Recirculation Control Motor Circuit Troubleshooting

908-09 models 4-door with A/T and '10 model with AT

1. Check the No. 16 (7.5 A) fuse in the driver's under-dash fuse/ relay box.

Is the fuse OK? YES-

Go to step 2.

NO

-Replace the fuse, and recheck. If the fuse blows again, check for a short in the No. 16 (7,5 A) fuse circuit.

2. Disconnect the recirculation control motor 7P connector.

3. Turn the ignition switch to ON (II).

4. Measure the voltage between recirculation control motor 7P connector terminal No. 1 and body ground.

RECIRCULATION CONTROL MOTOR IP CONNECTOR

Wire side of female terminals


Wire side of female terminals

Is there battery voltage? YES

-Go to step 5.

NO

-Repair an open in the wire between the No. 16 (7.5 A) fuse in the driver's under-dash fuse/relay box and the recirculation control motor.

5. Turn the ignition switch to LOCK (0).

6. Test the recirculation control motor (see page 21-63).

Is the recirculation control motor OK? YES

-Go to step 7.

NO

-Replace the recirculation control motor (see page 21-64), or repair the recirculation control linkage or door.

7. Disconnect the HVAC control unit 24P connector.

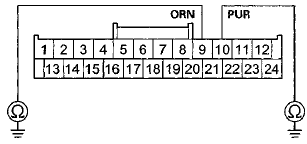

8. Check for continuity between body ground and HVAC control unit 24P connector terminal No. 9 and No. 10 individually.

HVAC CONTROL UNIT 24P CONNECTOR

Wire side of female terminals


Wire side of female terminals

Is there continuity? YES

-Repair a short to body ground in the wire(s) between the HVAC control unit and the recirculation control motor.

NO

-Go to step 9.

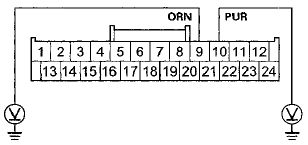

9. Turn the ignition switch to ON (II), and check the same terminals for voltage between each terminal and body ground.

HVAC CONTROL UNIT 24P CONNECTOR

Wire side of female terminals


Wire side of female terminals

Is there any voltage? YES

-Repair a short to power in the wire(s) between the HVAC control unit and the recirculation control motor. This short may also damage the HVAC control unit. Repair a short to power before replacing the HVAC control unit.

NO

-Go to step 10.

10. Turn the ignition switch to LOCK (0).

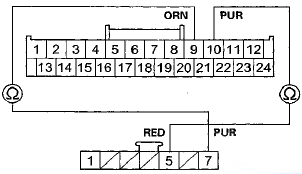

11. Check for continuity between the following terminals of the HVAC control unit 24P connector and the recirculation control motor 7P connector.

24P:      7P:

No. 9    No. 7

No. 10   No. 5

HVAC CONTROL UNIT 24P CONNECTOR

Wire side of female terminals

RECIRCULATION CONTROL MOTOR 7P CONNECTOR


RECIRCULATION CONTROL MOTOR 7P CONNECTOR

Wire side of female terminals

Is there continuity? YES

-Check for loose wires or poor connections at the HVAC control unit 24P connector, and at the recirculation control motor 7P connector. If the connections are good, substitute a known-good HVAC control unit, and recheck. If the symptom/indication goes away, replace the original HVAC control unit (see page 21-65).

NO

-Repair an open in the wire(s) between the HVAC control unit and the recirculation control motor.
