Honda Accord: Relays - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Relays

Power Relay Test

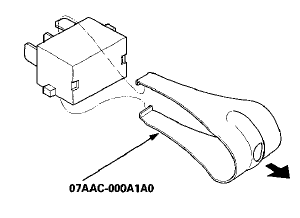

Special Tools Required

Relay Puller 07AAC-000A1A0

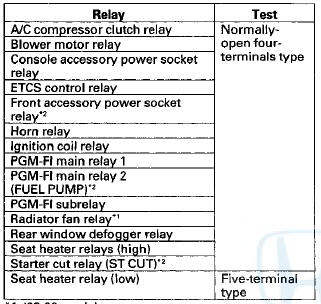

Use this chart to identify the type of relay, then do the test listed for it.

*1:'08-09 models


*1:'08-09 models

*2: Carefully remove the relay from the driver's under-dash fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay.

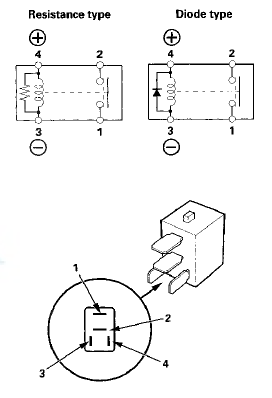

Normally-open Four-terminal Type


Normally-open Four-terminal Type

Check for continuity between the terminals: • There should be continuity between terminals No. 1 and No. 2 when battery power is connected to terminal No. 4, and body ground is connected to terminal No. 3.

• There should be no continuity between terminals No. 1 and No. 2 when power is disconnected.

Five-terminal Type


Five-terminal Type

Check for continuity between the terminals: • There should be continuity between terminals No. 1 and No. 2 when battery power is connected to terminal No. 5, and body ground is connected to terminal No. 3.

• There should be no continuity between terminals No. 1 and No. 4 when power is disconnected.


Relay Circuit Board Test ('OS-OS models)


Relay Circuit Board Test ('OS-OS models)

The relay circuit board is part of the under-hood fuse/relay box, and it contains these relays:

• A/C condenser fan relay

• Windshield wiper motor relay

• Windshield wiper intermittent refay

• Windshield wiper high/low relay

1. Do the battery terminal disconnection procedure (see page 22-91).

2. Disconnect under-hood fuse/relay box connectors B (14P)andC(5P).


3. Test each relay circuit as shown:


3. Test each relay circuit as shown: A/C condenser fan relay: There should be continuity between terminals C1 and C3 when battery power is connected to terminal B11, and body ground is connected to terminal B7 (or B8).

There should be no continuity between terminals C1 and C3 when power is disconnected.

Windshield wiper motor relay: There should be continuity between terminals C4 and ' BIO, and terminals C4 and B12 when battery power is connected to terminal B9, and body ground is connected to terminal B3. There should be no continuity between terminals C4 and B10, and terminals C4 and B12 when power is disconnected.

Windshield wiper intermittent relay: There should be battery voltage between terminal C5 and body ground when batter/ power is connected to terminals B9 and C4, and body ground is connected to terminals B3 and B12. There should be no voltage between terminal C5 and body ground when terminal B12 is disconnected.

Windshield wiper high/low relay: There should be continuity between terminals B3 and C2 when battery power is connected to terminals B9 and C4, and body ground is connected to terminals B3 and B10.

There should be no continuity between terminals B3 and C2, and there should be continuity between terminals B3 and C5 when power is disconnected.

A/G condenser fan relay

Windshield wiper motor relay, Windshield wiper


Windshield wiper motor relay, Windshield wiper intermittent relay, Windshield wiper high/low relay

4. If any relays falls the test, replace the relay circuit


4. If any relays falls the test, replace the relay circuit board.

5. Reinstall all removed parts.

6. Do the battery terminal reconnection procedure (see page 22-91).

Relay Circuit Board Test f1G model)

The relay circuit board is part of the under-hood fuse/relay box, and it contains these relays:

• A/C condenser fan relay

• Radiator fan relay

• Fan control relay

• Windshield wiper motor relay

• Windshield wiper intermittent relay

• Windshield wiper high/low relay

1. Do the battery terminal disconnection procedure (see page 22-91).

2. Disconnect under-hood fuse/relay box connectors B (14P) andC(5P).

CONNECTOR B (14P)

CONNECTOR C (5P)


CONNECTOR C (5P)

3. Test each relay circuit as shown:


3. Test each relay circuit as shown: A/C condenser fan relay: There should be continuity between terminals C1 and B2 when battery power is connected to terminal B10 (or B9), and battery ground is connected to terminal B8.

There should be no continuity between terminals C1 and B2 when power is disconnected.

Radiator fan relay: - There should be continuity between terminals B1 and C4 when battery power is connected to terminal B7, and battery ground is connected to terminal B11.

There should be no continuity between terminals B1 and C4 when power is disconnected.

Fan control relay: There should be continuity between terminals C3 and C5 when battery power is connected to terminal B3, and battery ground is connected to terminal B11.

There should be continuity between terminals C3 and B2 when power is disconnected.

Windshield wiper motor relay: There should be continuity between terminals C2 and B6, when battery power is connected to terminal B12 and C2, and battery ground is connected to terminal B4and B13.

There should be no continuity between terminals C2 and B6, when ground is disconnected from terminal B4.

Windshield wiper intermittent relay: There should be battery voltage between terminals B6 and body ground when battery power is connected to terminals B12 and C2, and battery ground is connected to terminal B4 and B13.

There should be no voltage between terminals B6 and body ground when terminal B13 is disconnected.

Windshield wiper high/low relay: There should be continuity between terminals B4 and B5 when battery power is connected to terminals B12 and C2, and battery ground is connected to terminals B4andB14.

There should be no continuity between terminals B4 and B5, and there should be continuity between terminals B4 and B6 when power is disconnected.

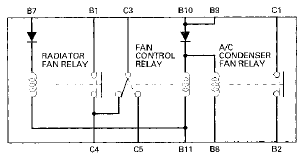

Radiator fan relay, Fan control relay, A /C condenser fan relay

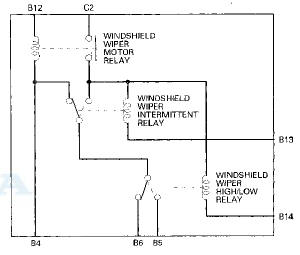

Windshield wiper motor relay. Windshield wiper


Windshield wiper motor relay. Windshield wiper intermittent relay, Windshield wiper high/low relay

4. If any relays fails the test, replace the relay circuit


4. If any relays fails the test, replace the relay circuit board.

5. Reinstall all removed parts.

6. Do the battery terminal reconnection procedure (see page 22-91).
