Honda Accord: Safety Labels

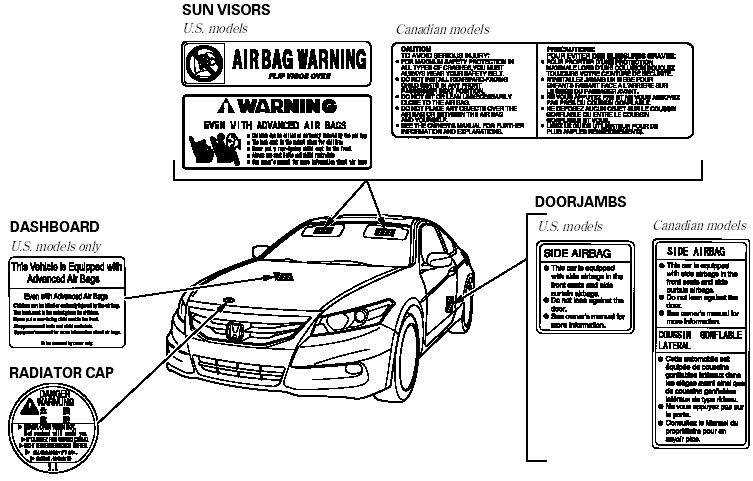

These labels are in the locations shown. They warn you of potential hazards that could cause serious injury or death. Read these labels carefully.
If a label comes off or becomes hard to read (except for the U.S.
dashboard label which may be removed by the owner), contact your dealer for a replacement.
