Honda Accord: Countershaft Bearing Replacement - Manual Transmission - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Countershaft Bearing Replacement

Special Tools Required

- Oil Seal Driver, 65 07JAD-PL90100

- Adjustable Bearing Puller, 20-”40 mm 07736-A01000B

- Slide Hammer 3/8"-16 UNF, commercially available

1. Remove the bearing set plate (A) from the clutch housing (B).

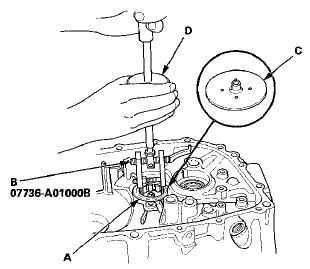

using the 20-”40 mm2. Remove the needle bearing (A)
using the 20-”40 mm adjustable bearing puller (B) and a commercially available 3/8"-16 UNF slide hammer (D), then remove oil guide plate C.

3. Position oil guide plate C and a new needle bearing

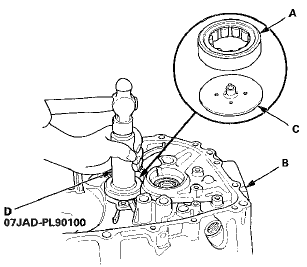

3. Position oil guide plate C and a new needle bearing (A) in the bore of the clutch housing (B).

4. Install the needle bearing using the 65 oil seal driver


4. Install the needle bearing using the 65 oil seal driver (D).

5. Install the bearing set plate (A) with bolts (B).
