Honda Accord: Fuel Line Inspection - Fuel Supply System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Fuel Line Inspection

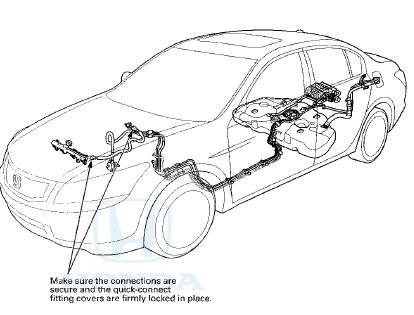

Check the fuel system lines and hoses for damage, leaks, and deteriorationi,. Replace any damaged parts.

Check all clamps, and make sure they are properly positioned and tightened.


Check all clamps, and make sure they are properly positioned and tightened.

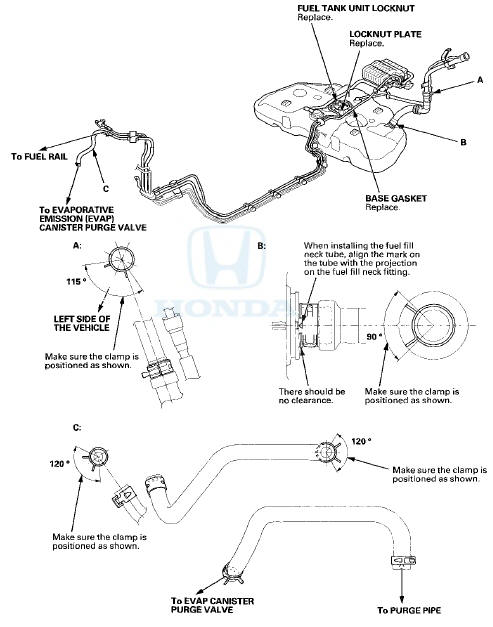

All models except PZEV

Check all clamps, and make sure they are properly positioned and tightened.


Check all clamps, and make sure they are properly positioned and tightened.

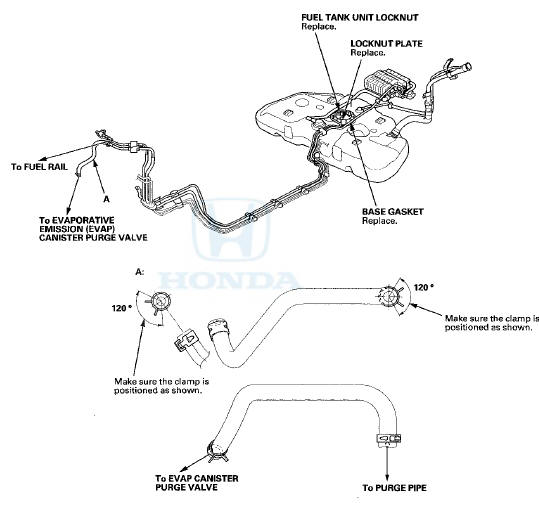

PZEV model

Fuel Line/Quick-Connect Fitting


    Fuel Tank Draining
    1. Remove the fuel tank unit (see page 11 -320). 2. Using a hand pump, a hose, and a container suitable for fuel, draw the fuel from the fuel tank. 3. Reinstall the fuel tank unit (see page 11- ...

    Fuel Line/Quick-Connect Fitting Precautions
    The fuel line/quick-connect fittings (A, B, C, D, E, and F) connect the fuel rail (G) to the fuel feed hose (H), the fuel feed hose to the fuel line (I), the fuel line (J) to the fuel tank unit (K) ...
