Honda Accord: Specifications (4-cylinder models) - Technical Information - Honda Accord 2008-2012 Owner's ManualHonda Accord: Specifications (4-cylinder models)

Dimensions

Dimensions
Dimensions

Weights

Weights
Weights

Air Conditioning

Air Conditioning
Air Conditioning

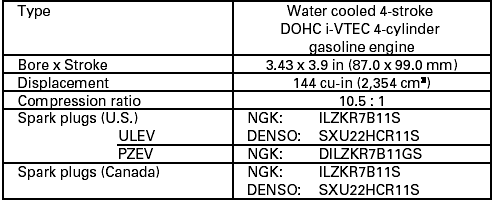

Engine

Engine
Engine

Seating Capacities

Seating Capacities
Seating Capacities

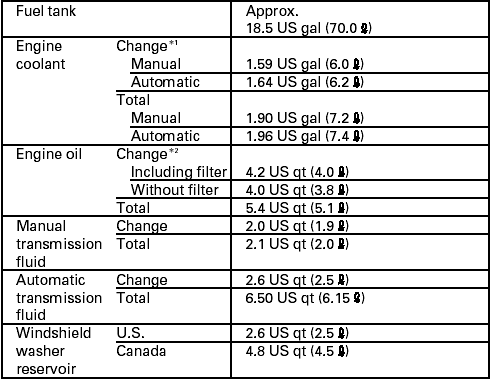

Capacities

Capacities
Capacities

* 1: Including the coolant in the reserve tank and that remaining in the engine

Reserve tank capacity: 0.180 US gal (0.68 l)

* 2: Excluding the oil remaining in the engine

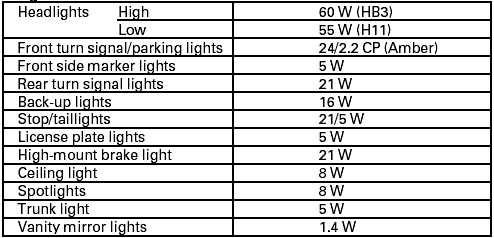

Lights

Lights
Lights

Battery

Battery
Battery

*: PZEV engine model, and Canadian models

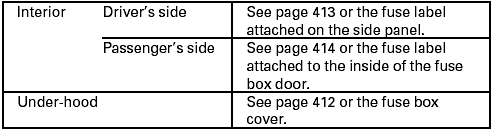

Fuses

Fuses
Fuses

Tires

Tires
Tires

Alignment

Alignment
Alignment
